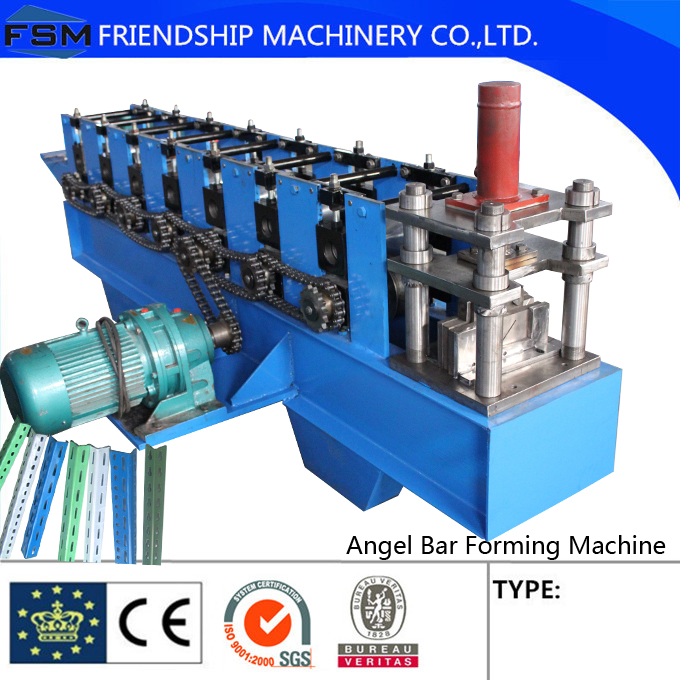

Steel Angle Machine For Roof Structure / Roll Forming Machine
Main Data:
1.Finished product width: 134/134mm, height:134mm
2: working speed: 12m—16m/min (not contain cutting )
3: roll station: 11 stations
4: material of roller: 45＃steel, polished and coated with chrome
5:material of main shaft:45﹟steel diameter roller: Ф70mm
6: main power: 5.5kw drive Brand: GuoMao
7: forming thickness: 0.35mm—0.42mm color steel and galvanized steel 350Mpa-550Mpa
Ⅰ: Composition of machine
Roll forming main machine……………………………1 unit
Manual de-coiler…………………………………… …1 unit
Control panel…………………………………………..1 unit
Hydraulic station…………………………………… …1 unit
Manual out table……………………… ……………….2 unit
Ⅱ: Details of each composition
Drawing for profiles
Parameter table
| working speed: | 12m—15m/min |
| roll station | 11 stations for forming |
| main power | 11.0kw |
| Transmission | by single line 1.0 inch Chains |
| size of machine | 4800 x 800 x1200 (L x W x H) |
| weight | about 4000Kgs |
4:material of roller: Gcr15 steel, polished and coated with chrome HRC58-62℃
5:material of main shaft:45﹟forge steel diameter roller: Ф56mm
6: main power: 11.0kw
7: forming thickness: 5.0mm Q235
More Pics For your reference
Enterprises Introduction
We, Friendshachinery Co., Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.Our manin products: Metal roof &wall panels machines, C&Z purlin machines drywall Stud-track forming machine,Metal decks machines,No- girder and Column curves forming machines,Guard rails forming machine,Downspout pipes forming machines and so on.
We can customize forming machine according to user's requirements.And we can provide professinal service,high quality,through design,and installation.
Warmly welcome to visit our factory no matter you are distibuters or end-users,and looking forward to cooperating with you for mutual benefits.
